Simpson Strong-Tie

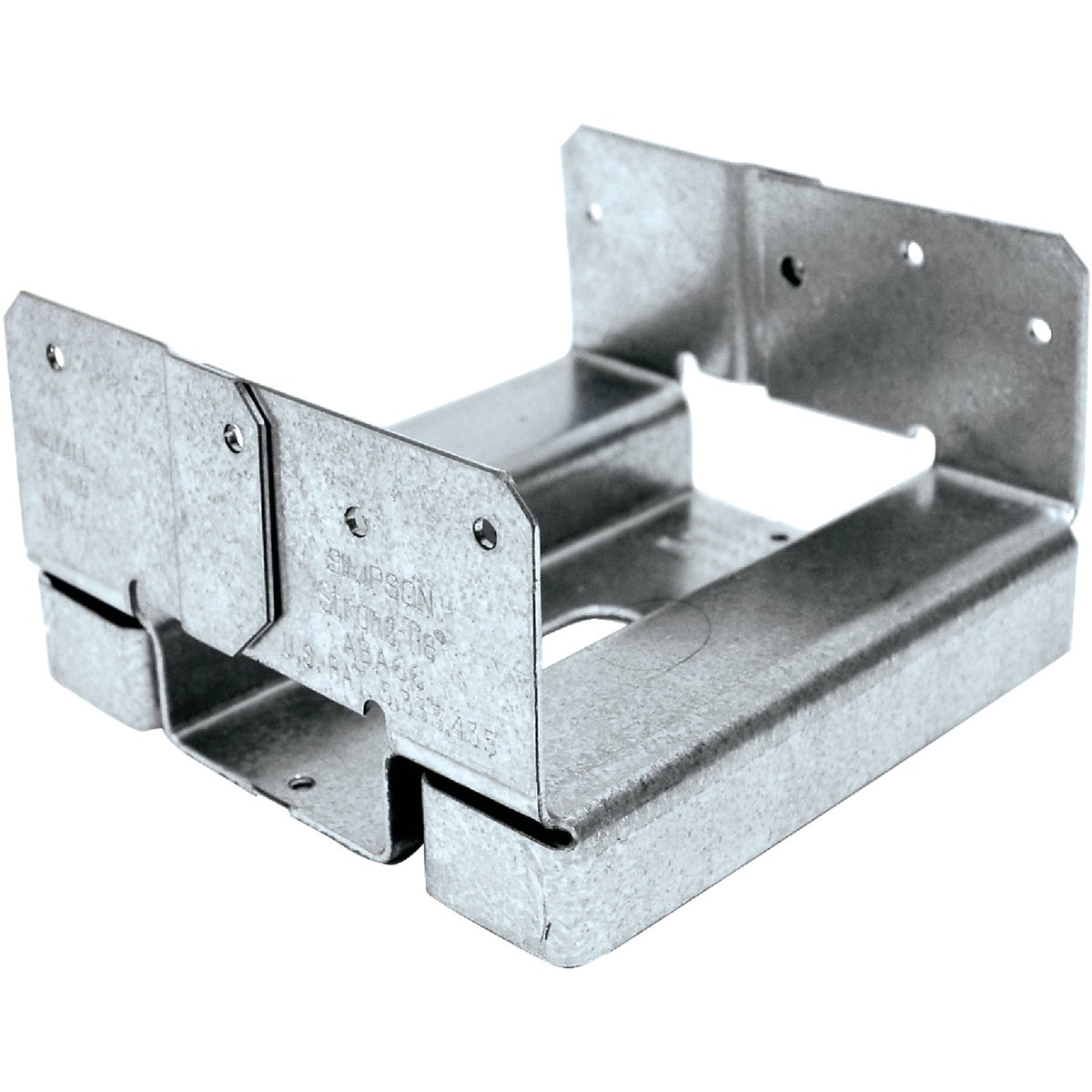

Simpson Strong-Tie 6 In. x 6 In. 14 ga Z-Max ABA Post Base

Category Post Base
105732
Simpson Strong-Tie

Simpson Strong-Tie 6 In. x 6 In. 14 ga Z-Max ABA Post Base

Item Code: 105732
Category Post Base
The ABA is an adjustable post base which offers moisture protection and finished hardware appearance. These post bases feature a 1" standoff height above concrete floors, code-required when supporting permanent structures that are exposed to the weather, or water splash, or in basements. They reduce the potential for decay at post and column ends. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). Place the post in the ABA and fasten using nails or Strong-Drive SD Connector screws. ZMAX galvanized coated steel.
Weight

16.25lb

Height

7.7in

Width

7.6in

Length

13.7in

Brand

Simpson Strong-Tie

Category

Post Base

Dimensions

5-1/2 In. W x 5-1/4 In. L x 3-1/8 In. H

Download

10665 Lb.

Finish

Z-Max

Gauge

14 ga

Install With

8-16d fasteners & 5/8 In. Anchor Dia

Material

Steel

Size

6 In. x 6 In.

Type

ABA Adjustable

Uplift

720 Lb.
