Simpson Strong-Tie

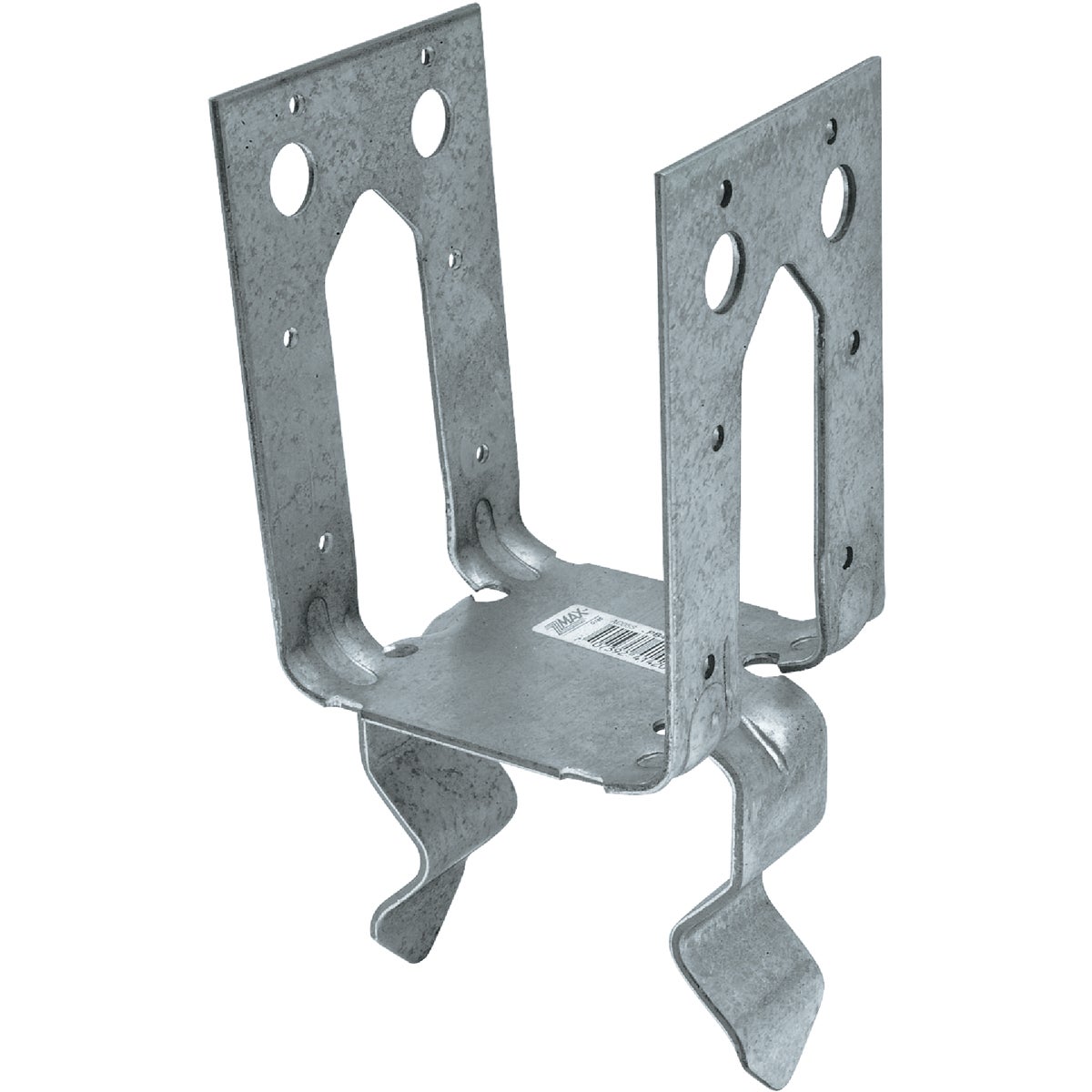

Simpson Strong-Tie 4 In. x 4 In. 12 ga Z-Max PB Post Base

Category Post Base
101847
Simpson Strong-Tie

Simpson Strong-Tie 4 In. x 4 In. 12 ga Z-Max PB Post Base

Product Description Specification

Item Code: 101847
Freight
Non returnable
Category Post Base
The PB base embeds in wet concrete after pour and is made to install flush with the concrete surface. This connector was designed to help resist upload forces. Holes are provided for installation with 16d commons. A 2" minimum side cover is required to obtain the full load. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or carports). 12-gauge galvanized steel. Some sizes available with ZMAX coating.
Weight

12.2lb

Height

7.9in

Width

8.9in

Length

13.7in

Brand

Simpson Strong-Tie

Category

Post Base

Dimensions

3-9/16 In. x 3-1/4 In.

Download

12685 Lb.

Finish

Z-Max

Gauge

12 ga

Install With

16d Fasteners

Material

Steel

Size

4 In. x 4 In.

Type

PB Base

Uplift

850 Lb.
