ProLine 1-1/2 In. FIP Forged Brass Full Port Ball Valve

Category Ball Valve
400534
ProLine

ProLine 1-1/2 In. FIP Forged Brass Full Port Ball Valve

Item Code: 400534
Category Ball Valve

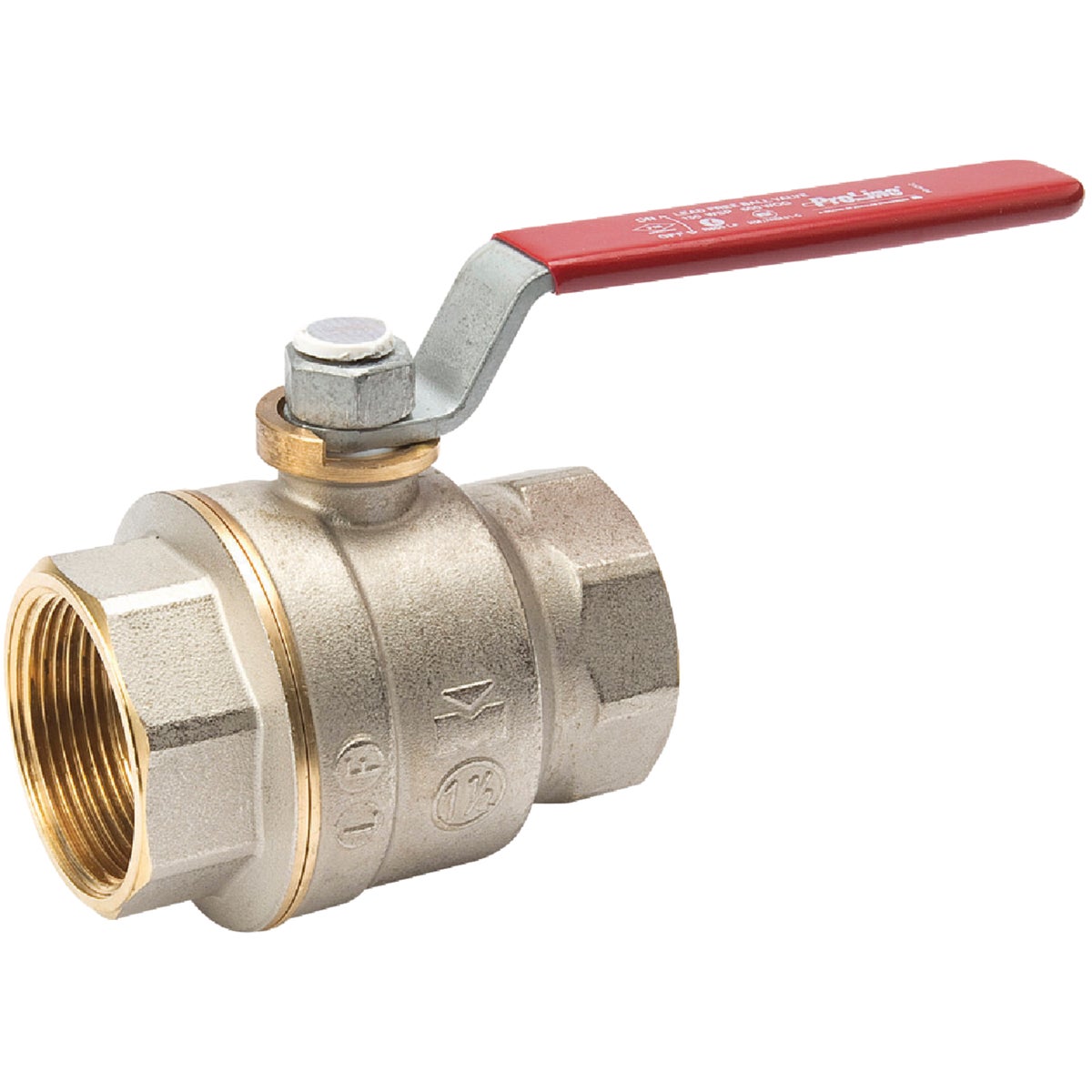

Forged brass chrome-plated full port ball valve FIP (female iron pipe). 600 PSI (pounds per square inch), nonshock WOG (water, oil, gas) (1/8" thru 3"). 150 psi wsp (working steam pressure) steam. Meets ANSI (American National Standards Institute)/NSF (National Sanitation Foundation) 61-1999A (1/2" thru 2"). CSA (Canadian Standards Associations) 3-88 5 PSIG (pounds per square inch gauge) certified (1/2" thru 2"). CSA tamper proof. CSA Certified. CSA B16.33 (125 PSIG)(1/2" thru 1"). UL (Underwriter's Labratories) LP (Liquid Petroleum) gas 400 PSI. Meets federal specification WW-V-35B Type II, Style 3. Suitable for use with flammable liquid (1/2" thru 2"). Pipe ends comply with ANSI B1.20.1. Temperature range -40 F (degree Farenheit) to 350 F. Import. 1-1/2" chrome ball valve. Manufactured to include no more than 0.25% weighted average lead content on wetted surfaces.
Weight

45.51lb

Height

21.7in

Width

9.35in

Length

8.7in

Brand

Proline

Category

Ball Valve

Material

Forged Brass

Pressure Rating

600 psi

Size

1-1/2 In. FIP

Temperature Rating

-40 to 350 deg

Type

Full Port
